Vapor Carbon Reinforced Plastic Polyimide PI Heating Film GC50 Grade Oem

Brand Name : Guofeng

Model Number : GC

Certification : UL ISO RoHS

Place of Origin : China Hefei

MOQ : 5kg

Price : $300-$30000

Payment Terms : L/C,T/T

Supply Ability : Negotiation

Delivery Time : Negotiation

Packaging Details : Barrier+ PE foam sheet+ PE film+ Foam packing cotton

Film Appearance : The base material shall achieve atomic-scale surface uniformity while exhibiting total elimination of morphological irregularities, nanoscale particulate embeddings, cross-linked polymer clusters, or non-native impurities throughout its operational zone, w

Film Thickness (um) : 50

Film Tensile Strengthh : 180MPa

Film Elongation at break : 30%

Film Young's Modulus : 3.5GPa

Film Insulation Strength : 220V/μm

Flame Retardant : V-0 Level

Thermal conductivity : 1500 W/(mK)

Contact Now

Polyimide Film with GC50 Grade Vapor-Carbon Reinforced Surface
Our proprietary GC-grade polyimide substrate is engineered through biaxial stretching to achieve exceptional in-plane molecular alignment. This specialized architecture ensures that the carbonization process yields an artificial graphite film with superior structural integrity and minimized defects. The resulting product exhibits a remarkably homogeneous morphology and an enhanced thermal conduction pathway, delivering significantly higher thermal conductivity compared to conventional alternatives.

Product Features

  1. Precision Molecular Orientation: The film undergoes controlled biaxial stretching to achieve a highly ordered in-plane molecular structure. This orientation is retained through carbonization and graphitization, significantly enhancing the thermal conductivity of the final artificial graphite film.

  2. Uniform Carbonization and Graphitization: Thanks to optimized heat treatment conditions, the product exhibits exceptional consistency during high-temperature processing. This results in smooth, finely foamed layers without structural defects.

  3. Controlled Polymer Structure: With a narrow molecular weight distribution and minimal low-molecular-weight components, the finished graphite film demonstrates outstanding flexibility and resistance to powdering, ensuring high durability and ease of handling.

Product Applications

  1. Advanced Thermal Management Solutions: The artificial graphite film manufactured from our GC-type polyimide carbon-based substrate delivers exceptional thermal conductivity, making it an ideal material for efficient heat dissipation in high-performance electronic devices, including smartphones, laptops, and 5G communication modules.

  2. Flexible and High-Performance Substrates: Beyond graphite production, the GC-type polyimide carbon-based film performs as a critical foundational material in next-generation flexible applications, such as bendable solar energy panels and ultra-thin, durable displays for wearable technology and foldable screens.

Place of Origin:
ANHUI, CHINA
Certification:
SGS, FDA
Material:
Polyimide
Color:
Yellow
Width:
514MM, 520MM, 1028MM, 1040MM.etc
Packaging:
Wooden pallet
Product Images

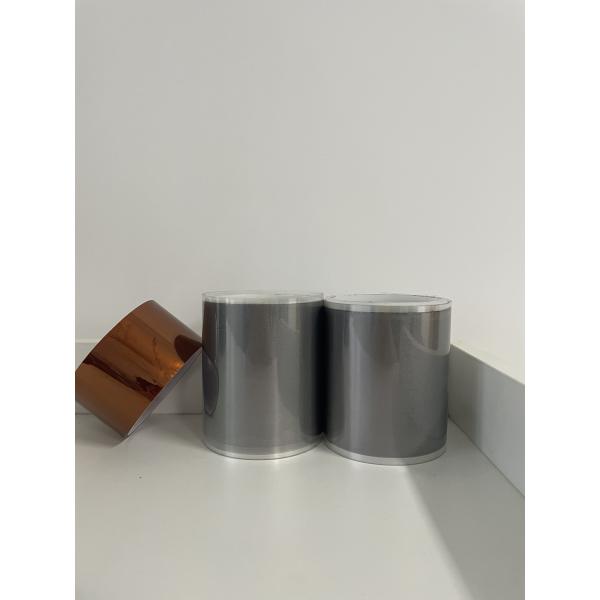

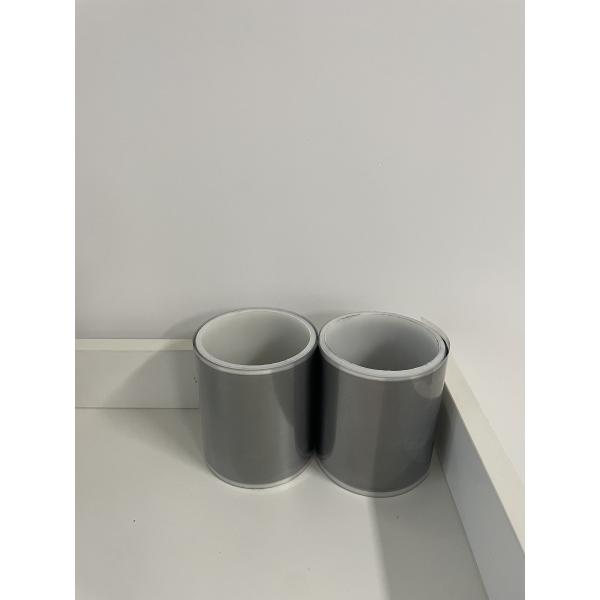

Vapor Carbon Reinforced Plastic Polyimide PI Heating Film GC50 Grade OemVapor Carbon Reinforced Plastic Polyimide PI Heating Film GC50 Grade Oem
